Using Epics/Balance-Local signal controllers
|
|
Note: You need a license for the signal controller. |
The Epics signal control allows you to simulate adaptive light signal control for an individual node using real time traffic data.
Examples and information on Balance-Central in English can be found in the directory ..\Examples\Examples Training\Signal Control\UTC - Workflow PTV Balance PTV Epic and ..\Tram Priority.PTV Epics.

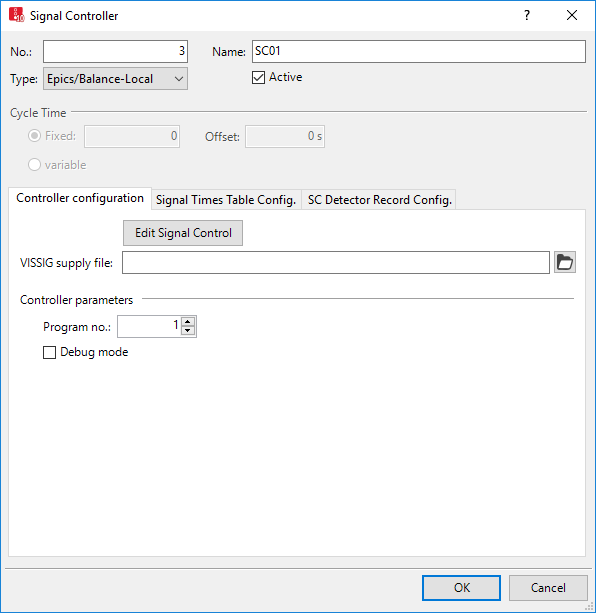

1. When you define an SC, in the Type list, click Epics/Balance-Local.
2. Open the Controller configuration tab.
3. Make the desired changes:
| Element | Description |
|---|---|
| Program no. | ProgNo: The signal program which is to be simulated. A change of program is possible if the simulation run is in single-step mode. If the new signal program number is confirmed with OK, the changeover is triggered in the next simulation second. |
| Debug mode | Debug mode enabled (Debug):  If this option is selected, the signal flow can be followed during simulation in debug mode. |
