Modeling interaction between vehicles and pedestrians

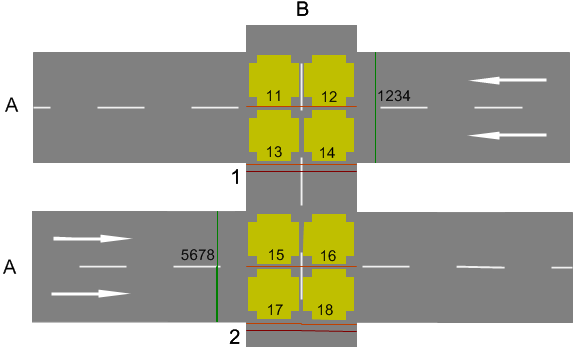

Model the interaction of vehicles and pedestrians or pedestrian flows with the following network objects:

• Signal control : in the figure, the red bar (1), (2) (Modeling signal controls for pedestrians)
• Conflict areas: in the figure, the eight yellow areas (Modeling conflict areas for pedestrians)
• Detectors: in the figure, the four orange lines (Modeling detectors for pedestrians)
• Priority rules (Modeling priority rules for pedestrians): (11) to (18) stop lines, (1234) and (5678) conflict markers
• Links for vehicles (A)
• Links for pedestrians (B)
