Time Space Diagram

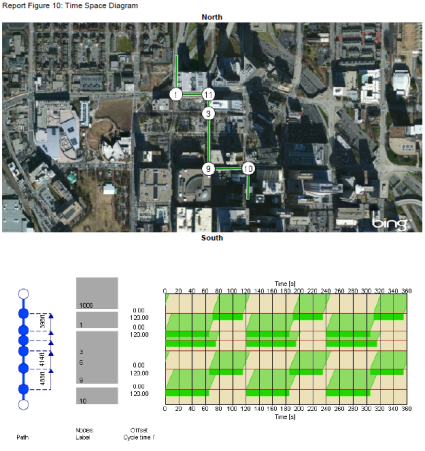

Time space diagrams figures are also reported. The route is displayed visually in the top half of the figure, and the time space diagram is depicted in the bottom half of the figure, either as “flowing off” or “arterial bands”:

Figure 59: Time Space Diagram
