Editing intergreen matrices
1. Open the SC Editor (Opening and using the SC Editor).
2. Click Intergreen matrices in the Navigator.
The intergreen matrices list opens.
3. Right-click the entry of your choice.
4. On the shortcut menu, click Edit.
|
Tip: Alternatively, you can display the window by clicking the intergreen matrix in the Navigator. |

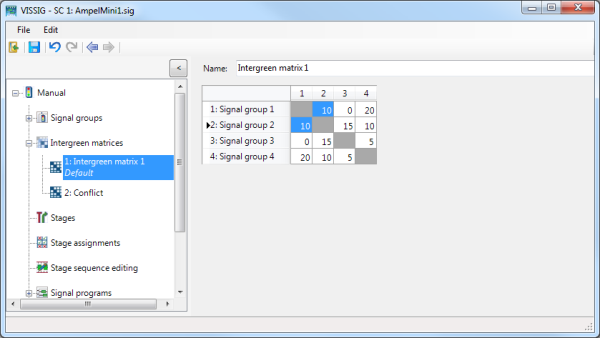

5. Make the desired changes:
| Element | Description |
|---|---|
| Name | Name of the intergreen matrix |
| White fields | Enter intergreen values |
| Gray fields | Editing not possible |
When a cell is activated, the corresponding cell in the opposite triangle is also highlighted.
