Defining and editing stages

Note: You will need the add-on module Vissig.

1.  Open the SC Editor (Opening and using the SC Editor).

2.  Double-click the desired SC in the Navigator.

3.  Click Stages in the Navigator.

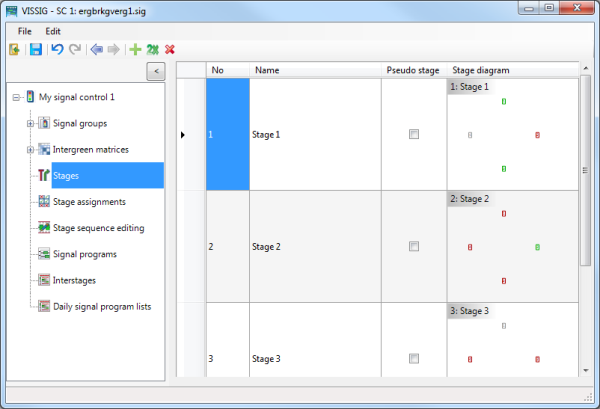

The stages list opens.

If no stage is defined, only the column titles are shown.

4.  Right-click in the list.

The context menu opens.

5.  Click on the desired entry.

Element	Description
Add	Add new stage with the first free number
Duplicate	Copy stage and insert with a new number
Delete	Delete selected stages

6.  Click the  Save button.

7.  Make the desired changes:

Element	Description
No.	Number of stage
Name	Name of stage
Pseudo stage	If the option is selected, the stage duration is not changed during green time optimization. The duration of a pseudo stage is zero seconds in all stage-based signal programs. This option acts as a "stage transition divider" to handle the special case when more than one switching command is received during a stage transition of a signal group. In this case, the stage transition is divided into two stage transitions, each linked to a pseudo stage. The Pseudo Stage option can only be selected if no stage transition has been defined for this stage.
Stage diagram	Graphical representation of stage

8.  Click the  Save button.

Note: To display pavement markers in Vissim, the following nodes are required: A node for the relevant node A node for each neighboring node For these nodes, the attribute Use for evaluation must be selected.
