Exporting nodes and edges for assignment in Visum

After a dynamic assignment, you can export the network and demand from the dynamic assignment for assignment in Visum (Using an assignment from Visum for dynamic assignment). Vissim creates the following files in the process:

Visum version file *.ver
Visum network file *.net
Visum matrix files *.mtx

The data of the network file and matrix file is also contained in the version file.

1. Open the desired network in Vissim.

2. Make sure that a dynamic assignment was performed.

3. From the File menu, choose > Export > PTV Visum (Nodes/Edges).

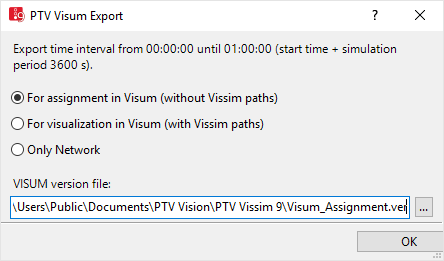

The PTV Visum Export window opens.

4. Select the option For assignment in Visum (without Vissim paths).

5. Click the button .

6. Specify a folder and a file name for the version file *.ver.

Notes:

You can specify only the folder and the file name for the version file. Parallel to the file *.ver, this export creates a Visum network file *.net and a Visum matrix file *.mtx with the same file name as the version file. The files are saved in the folder of the version file.
If the Vissim network contains edges which cannot be exported to Visum, these are shown in the Messages window. You can still execute or cancel the export. Vissim supports you when repairing the nodes and edges.

7. Confirm with OK.

The export starts. If the Vissim network contains nodes with non-unique zone connectors (parking lot zone), a message is displayed. May you still perfom the data export or cancel it.

8. If you cancel the export, you can cancel the non-unique zone connectors (Canceling non-unique zone connectors). Then perform the export again.
