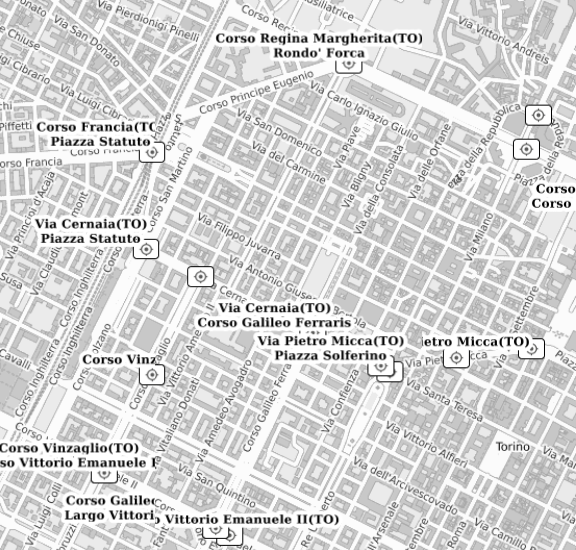

The Traffic Message Channel (TMC) Locations layer displays all location points of the TMC table.
This channel provides information about the traffic situation via radio.
Click a TMC icon to open a pop-up window listing the attributes of the TMC Location.
According to the zoom level, a single icon can group two or more "real" locations.
In this case, before showing the list of attributes, a pop-up window opens allowing you to select the specific TMC Locations from the list associated with the icon.
The TMC Location list must be configured by filling a specific table (see → Filling TMC table).
Tip: You can get the same result through the operation (→ Showing a selected item).
LAYER INFO
| Info type | Description |
|---|---|
|
Graphical representation of a TMC Location. |
LAYER OPTIONS
| Option type | Description |
|---|---|
| Theme | It allows you to choose one of a set of graphical themes to represent the layer entities. |
Other common operations
- Select the layer in the ACTIVE LAYERS list.
- Click the
List icon.
A pop-up window with a list of items opens. Every item represents a TMC Location characterized by a set of attributes.
Other operations are available for the layer (→ Operations on layers).
