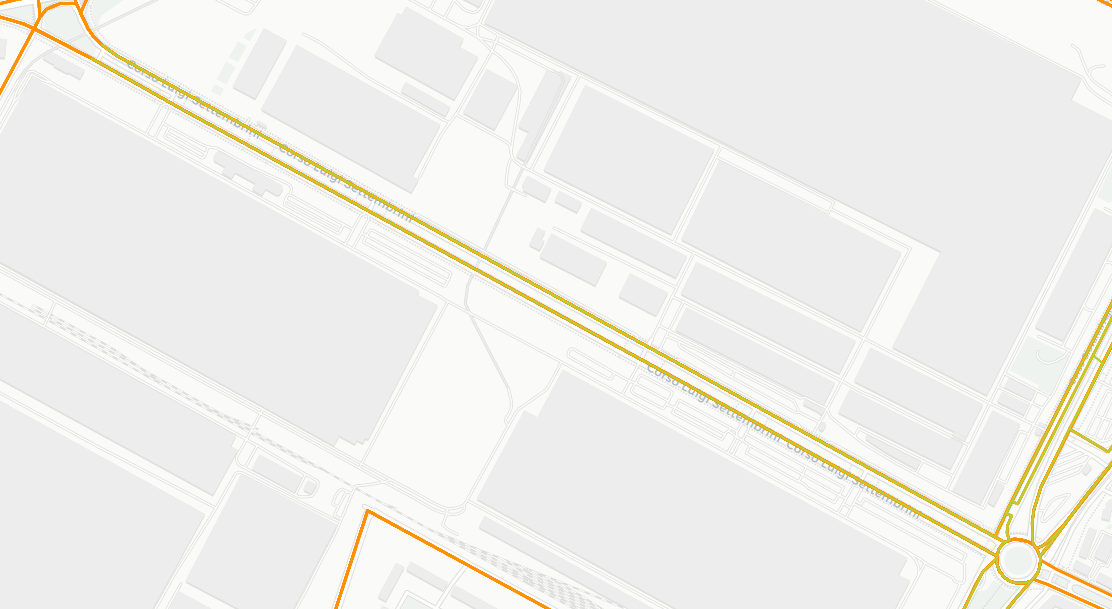

The Put Lines layer displays the public transport lines on the map.
This layer can manage different transport systems available in the system.
According to the zoom level, a single line can group two or more "real" lines.

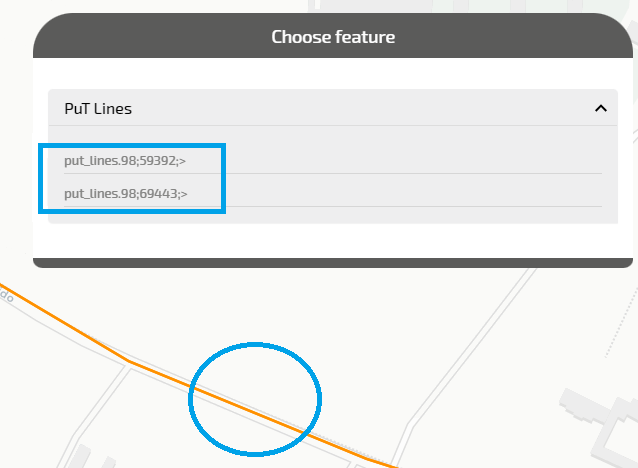

In this case, before showing the list of attributes of a specific line, a pop-up window opens to select the specific line from the list that is associated with the selection.
In the example shown, you can choose one of the two available options to obtain the list of attributes associated with the selected line.
LAYER INFO
It contains the legend of all the public transport lines that may be present on the map, each being associated with a different color:
-
Bus Line
-
Tram Line
-
Subway Line
-
Train Line
-
Ferry Line
-
Funicular Line
-
Trolleybus Line
-
Other PuT Line
You can therefore recognize each line by its color. If a line is overlapped with other lines, you can zoom in on the map with the mouse wheel to view such line more clearly.
Other common operations
- Select the layer in the ACTIVE LAYERS list.
- Click the
List icon.
A pop-up window with a list of items opens. Every item represents a public transport line which is characterized by a set of attributes.
Other operations are available for the layer (→ Operations on layers).
