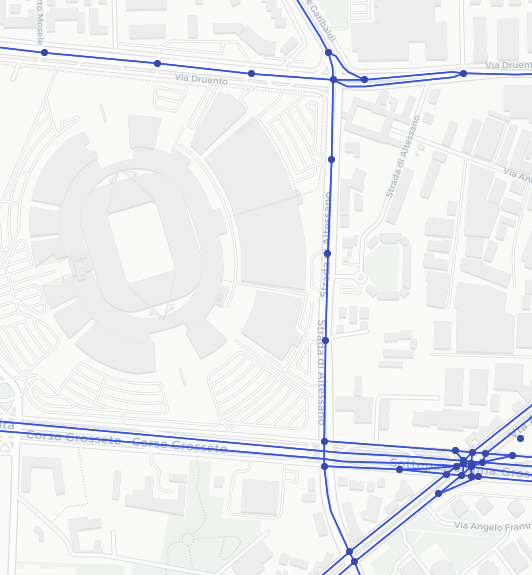

The Nodes layer contains all point locations of the road network that are stored in the nodes table.
Click a node icon to open a pop-up window listing the attributes of a node.
According to the zoom level, a single icon can group two or more "real" nodes.
In this case, before showing the list of attributes, a pop-up window opens allowing you to select the specific node from the list associated with the icon.
Tip: You can get the same result through the operation (→ Showing a selected item).
LAYER INFO
| Info type | Description |
|---|---|
|
Graphical representation of a node. |
LAYER OPTIONS
| Option type | Description |
|---|---|
| Theme | It allows you to choose from a set of graphical themes to represent the layer entities. |
Other common operations
- Select the layer in the ACTIVE LAYERS list.
- Click the
List icon.
A pop-up window with a list of items opens. Every item represents a node, which is characterized by a set of attributes.
Other operations are available for the layer (→ Operations on layers).
