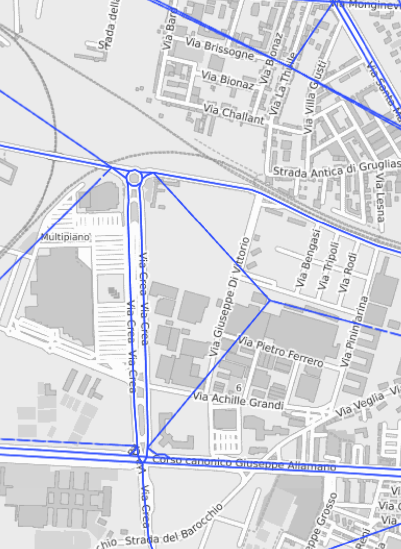

The Links layer displays the links network, where each link is defined as an aggregation of streets.
A link is delimited by link nodes.
A link node is a specific point of the link, used for modeling different traffic parameters.
This layer can also display connectors.
A connector is only a virtual/logical link used for connecting a centroid with a link node.
The forecast engine TRE can inject the transport network demand flows into the connector, allowing for their propagation.
The injection can proceed in both directions:
- From the centroid toward the link
- From the link toward the centroid.
Select a link to obtain detailed information and charts about traffic conditions.
Tip: You can get the same result through the operation (→ Showing a selected item).
LAYER INFO
| Info type | Description |
|---|---|
|
The line type (continuous or dashed) indicates if you are managing a link (an aggregation of streets, or at least one street) or a connector (a virtual link). |
LAYER OPTIONS
| Option type | Description |
|---|---|
| Theme |
It allows you to choose a set of graphic themes to represent the layer entities, according to a set of values that filter the data to be displayed in the layer. The common values are:
|
Direction of the traffic flow
- Click on a link to select it.
-
Click the left side area (or the right side area) of the link to view the graphic indication of the traffic flow direction.
A purple bold arrow appears.
- Select the link to open the pop-up window displaying the list of related attributes.
The window includes different buttons to produce different types of charts:
| Chart button | Description |
|---|---|
| Flow |
It displays the traffic flow dimension. |
| Travel time | It displays the travel time needed to complete a link or a street of the traffic network. |
| Speed |
It displays the vehicle speed along a specific link or street of the traffic network. |
| Queue | It displays information about vehicle queues. |
Other common operations
- Select the layer in the ACTIVE LAYERS list.
- Click the
List icon.
A pop-up window with a list of items opens. Every item represents a link, which is characterized by a set of attributes.
Other operations are available for the layer (→ Operations on layers).
